Free shipping on all smart devices

Discover the ideal product to complete your ecosystem of connected devices.

Interface several types of system.

Icone téléphone mobile
Contrôle du contrôleur multifonction dans l'appli Neviweb
Interior view multi-controller

Endless possibilities.

Control your devices from anywhere, at any time.

  • Possibility to integrate the device with several home automation systems
  • Possibility to connect different devices through the outputs of the multi-controller
  • Possibility to connect an external temperature sensor to the device
  • Several types of power supply possible for the multi-controller
Alert valve

Alert your alarm center.

Connect your multi-controller to your Sedna system to eliminate the risk of damage when you are away. It will trigger an alarm event that will notify your security company as soon as a leak is detected and the valve has been closed.

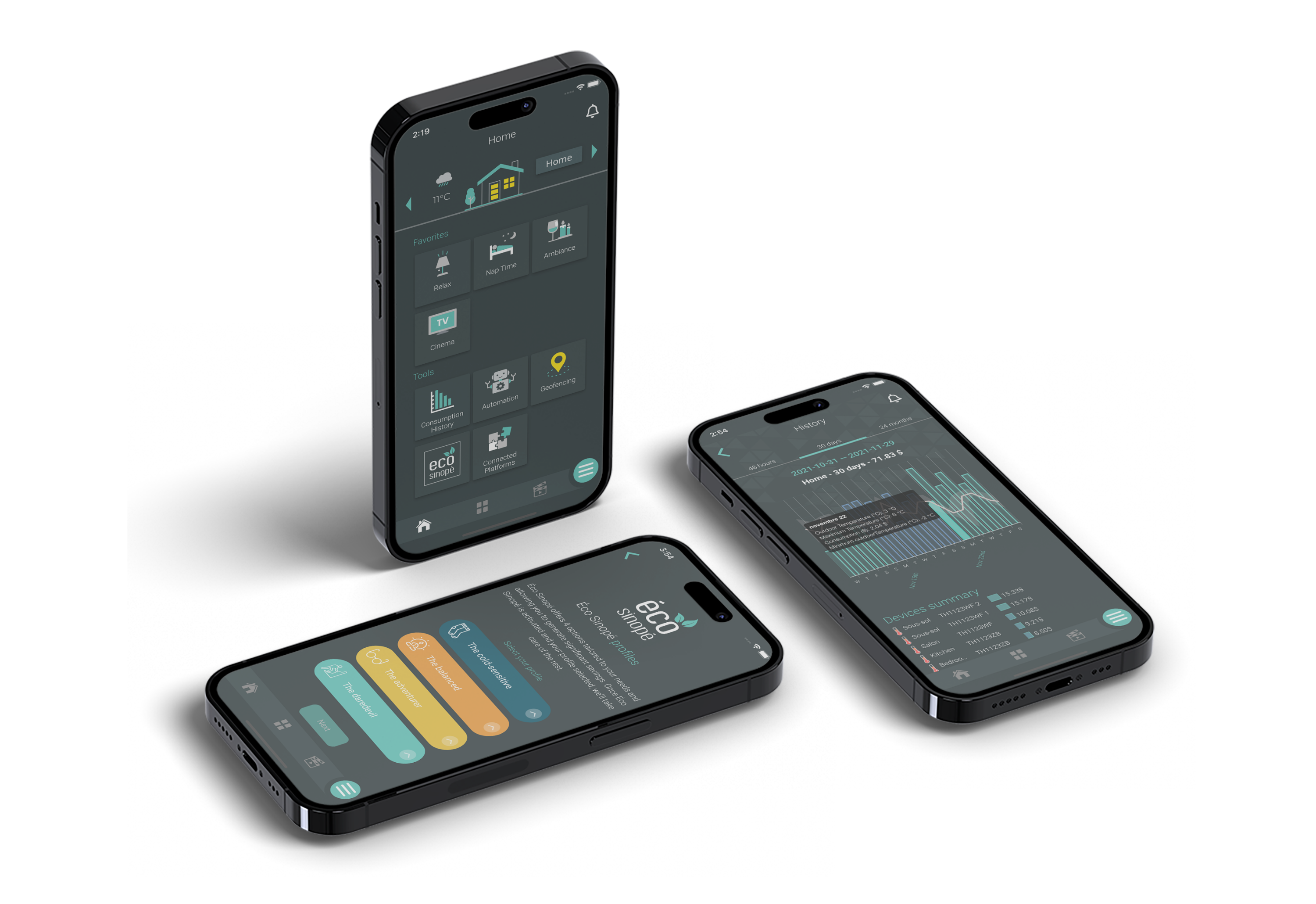

Views of the Neviweb app

Discover its multiple features in Neviweb .

Unleash the full potential of your multi-controller with its many features.

  • Automations
  • Geofencing
Discover Neviweb

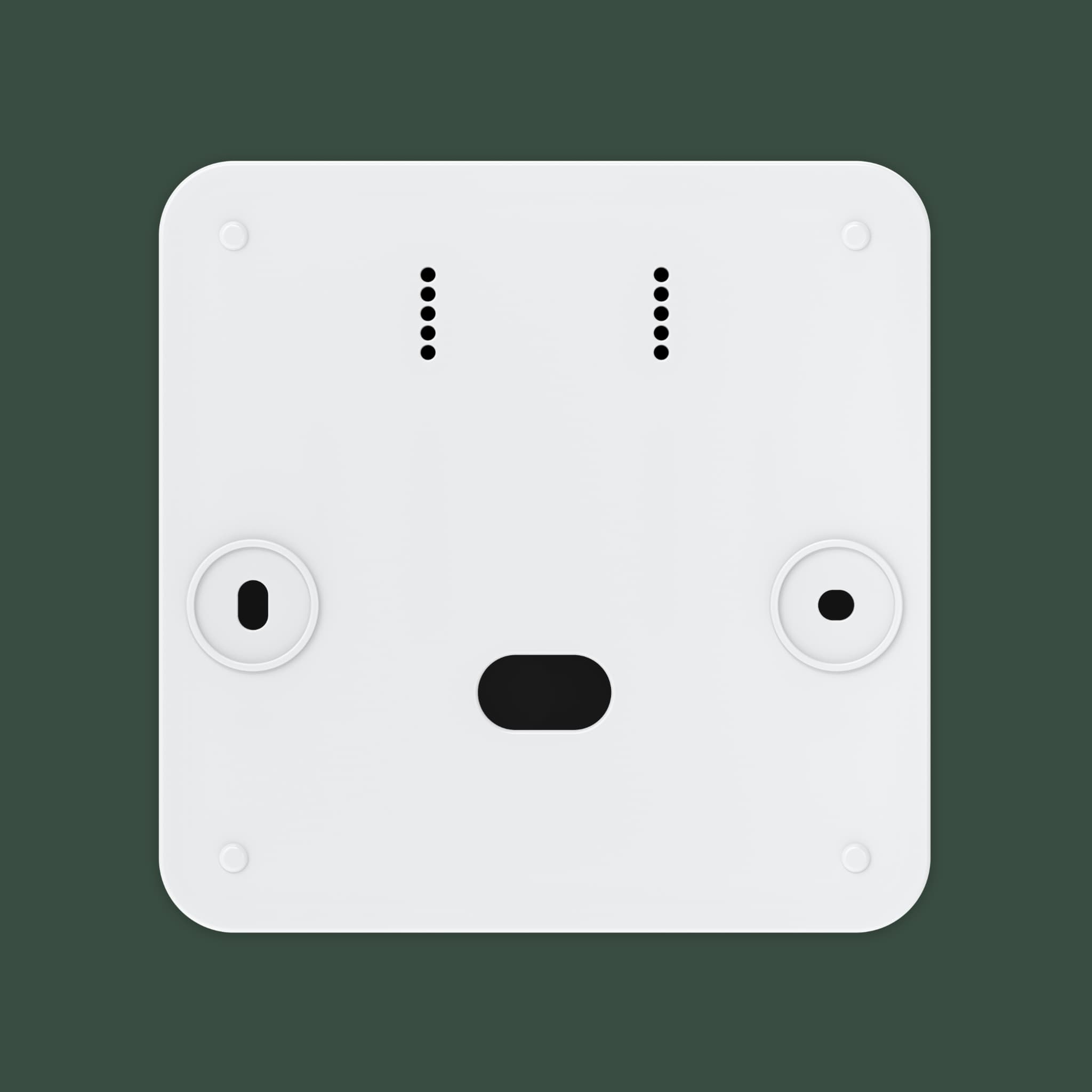

Zigbee Multi-Controller

Features and technical specifications

Possible use

The multi-controller can be connected to several types of wired devices to control certain appliances such as:

  • Window
  • Door
  • Wine cellar
  • Commercial refrigerators and freezers
  • Alarm system
Features
The MC3100ZB multi-controller has the following features:
  • Possibility to integrate the device with several home automation systems
  • Possibility to connect different devices through the outputs of the multi-controller
  • Possibility to connect an external temperature sensor* in the device
  • Different types of power supply possible for the multi-controller
  • Up to 4 devices can be connected to the multi-controller
Neviweb features:
  • When connected via Zigbee protocol to a Sedna** water damage protection system and wired to an alarm panel***, the MC3100ZB allows to:

- Activate a zone on the alarm panel that will notify the central alarm station when water is detected

- Close the Sedna water valve when arming the alarm system.

  • See which input(s) and output(s) are on
  • Possibility to have access to internal and external**** temperature and humidity readings
  • Create automations that run based on time, sunrise/sunset, device action, or your presence
  • Trigger actions based on your presence with geofencing

* Sensor not included

** Only compatible with VA4220WF and VA4221WF valves

*** Requires a Zigbee compatible alarm system

**** Requires the AC1310-01 sensor (sold separately)

Technical specifications

Dimensions
  • Height: 10.2 cm (4 in)
  • Width 10.2 cm (4 in)
  • Depth: 2.7 cm (1.1 in)
Communication protocol
  • Protocol: Zigbee 3.0
  • Frequency: 2.4 GHz
  • Transmission power: +20 dBm
  • Receiver sensitivity: -108 dB
Temperature ranges
  • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Internal temperature reading (accuracy 0.5 °C): 32 °F to 104 °F (0 °C to 40 °C)
  • External temperature reading (accuracy 0.5 °C): -40 °F to 158 °F (-40 °C to 70 °C )
Humidity reading
  • Humidity reading (accuracy 4.5%):
    5% to 95% non-condensing
Power supply mode
  • The multi-controller acts as a bridge so that devices connected to the output respond to events triggered by devices connected to the input.

Note: In battery mode, the device acts as a Zigbee end device and will not repeat any messages over the network.*

*Requires 2 AA lithium batteries (not included)

Power sources

3 possible power sources*:

  1. USB Micro B - 5 Vcc 65 mA
  2. 2 AA lithium batteries (5 years)
  3. Power supply connector
  • 12 Vdc 35 mA
  • 24 Vdc 20 mA
  • 24 Vac 15 mA

*Power supply and batteries not included

Warranty

3-year limited warranty

Included in the box

  • 1 multi-controller
  • Installation guide – French version
  • Installation guide – English version
  • 2 mounting screws
