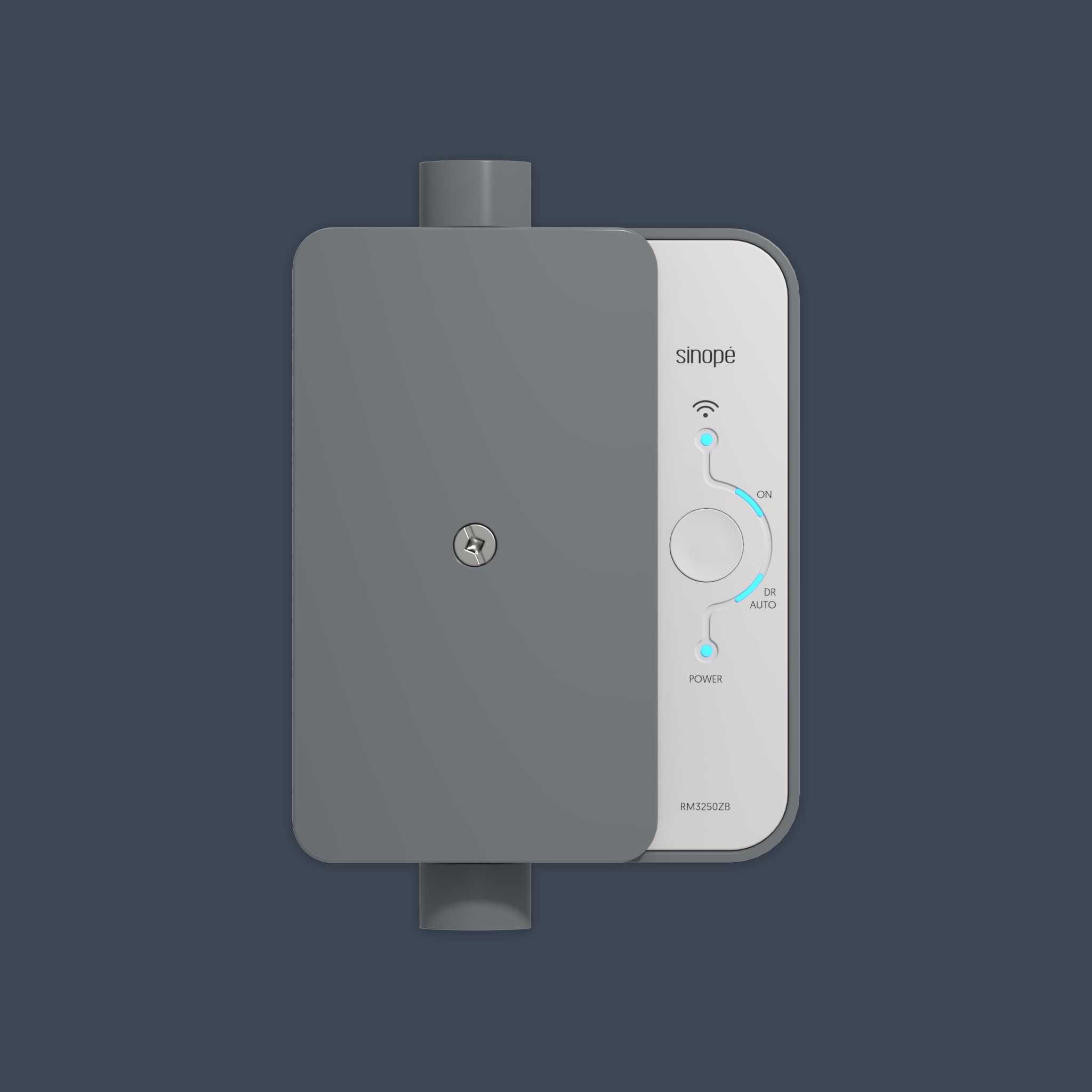

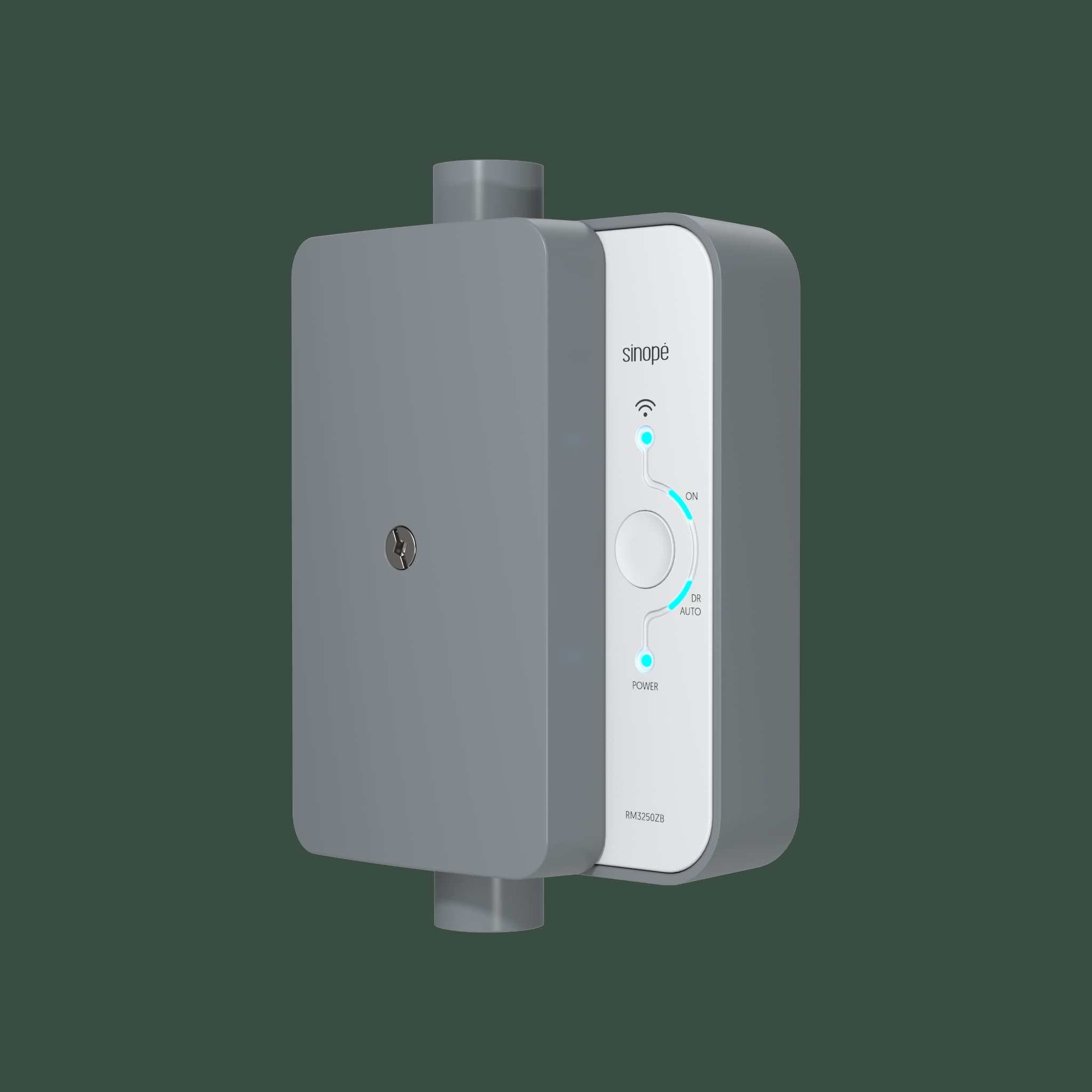

RM3250ZB

Great smart device to help reduce electric bill

. electric relay, electrical load controller, load controller, programmable, pump, relay, smarthings, Smartthings, timer, water heater, web, zigbee, zigbee-promo. Remotely control your water heater, pumps, exterior lighting, window AC unit and more with the smart electrical load controller (50A) - Zigbee. New. Your favorite ally to control the water heater, all pool pumps, and your EV recharge . Control all electric devices up to 50 amperes or 347 volts. Control energy-intensive appliances. . Simple, accessible, and evolving. * Remote access requires a permanent Internet connection and a GT130 gateway or a compatible Zigbee hub These features are available in Neviweb and require the GT130 hub. Features may vary from a platform to another.. Smart electrical load controller 50 A – RM3250ZB – Zigbee.

Height: 18.4 cm (7.26 in)

Width: 12.2 cm (4.8 in)

Depth: 5.5 cm (2.15 in)



.

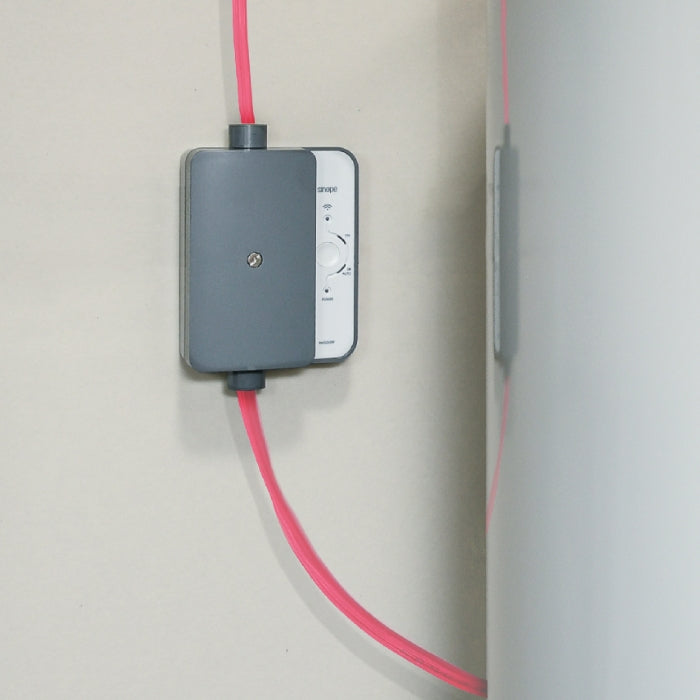

The smart electrical load controller – 50 A can control different types of devices such as:

• Electrical water heater

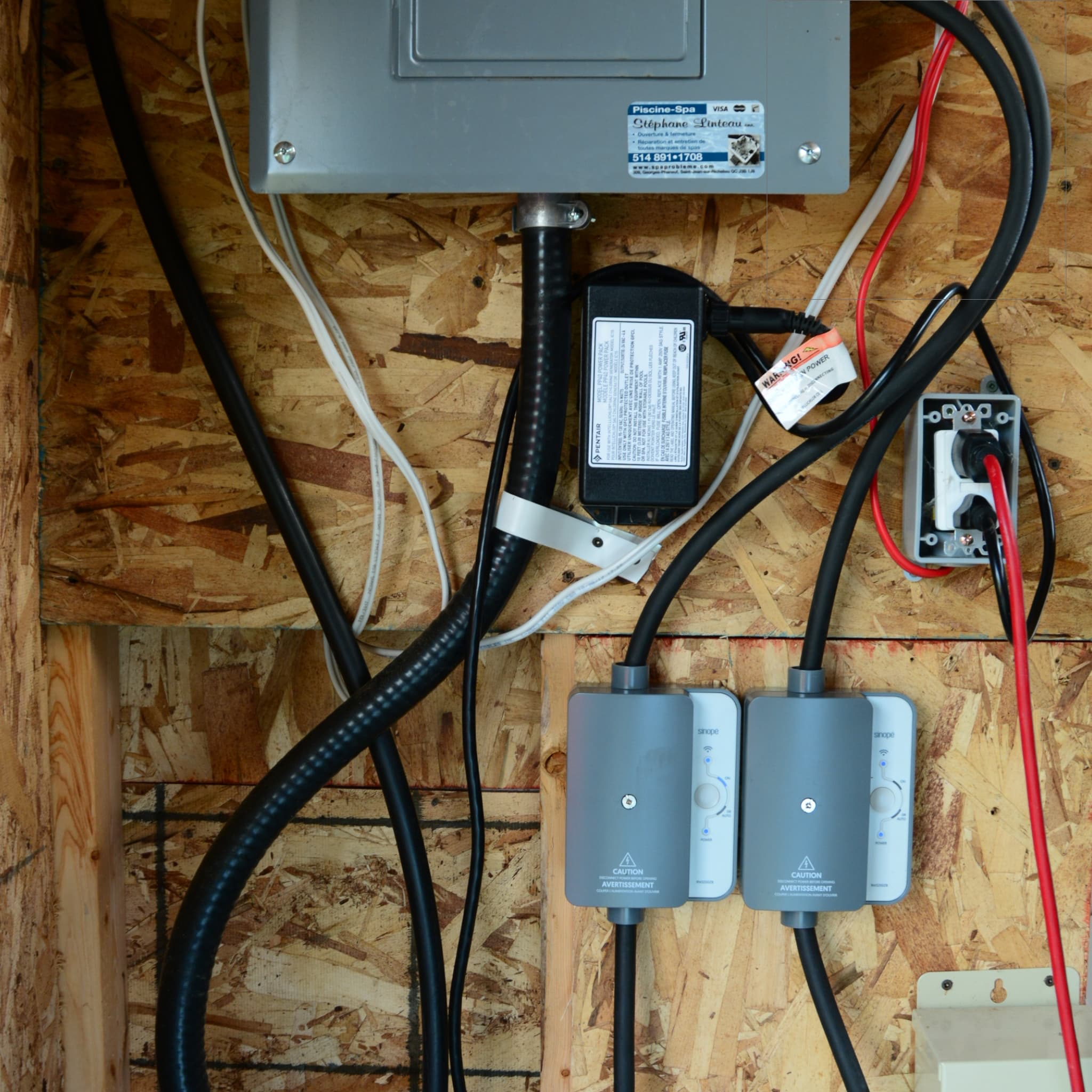

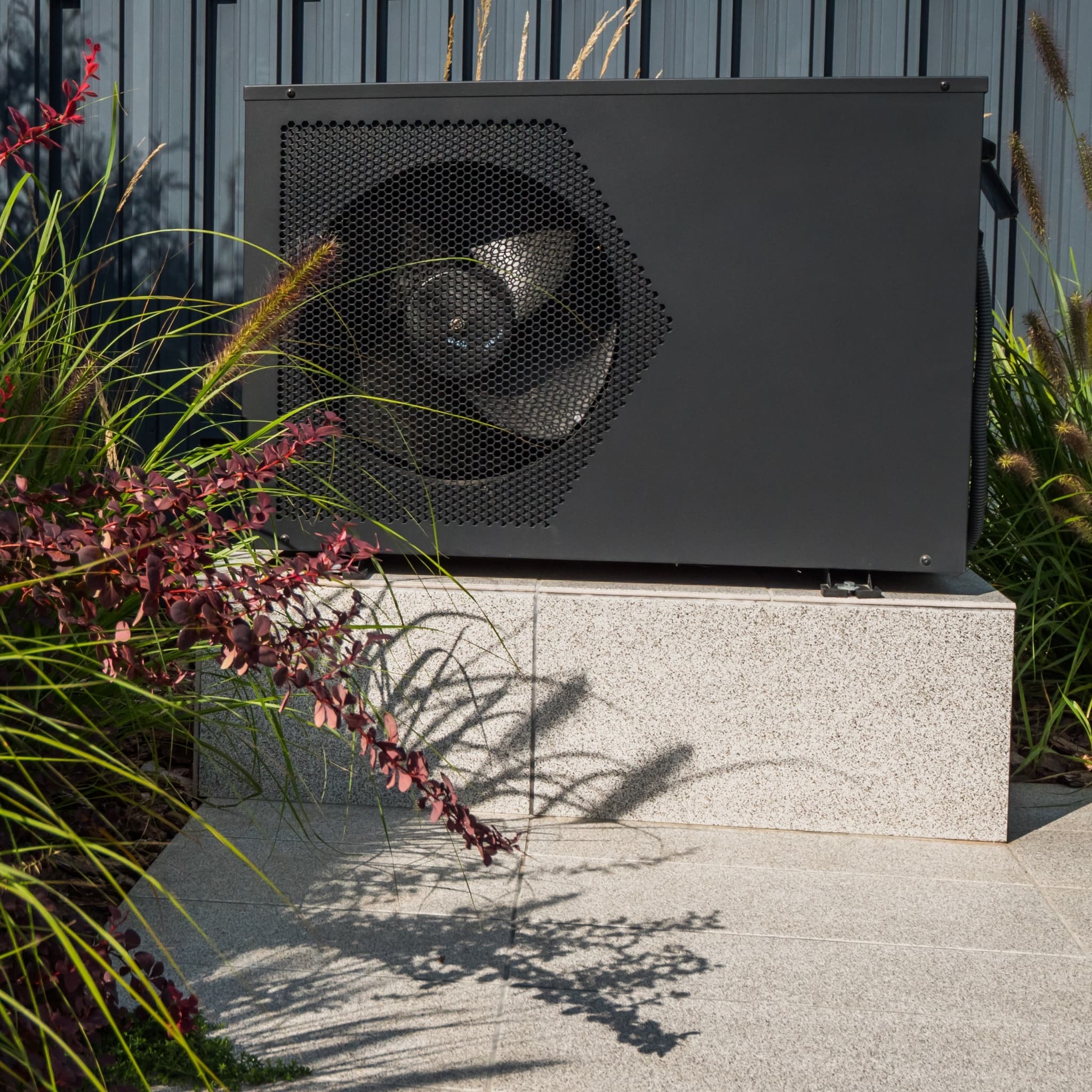

• Pumps (pool, irrigation, etc.)
• Window AC unit
• Outdoor lighting
• And much more!

*Indoor installation only.

.

Compatible with :

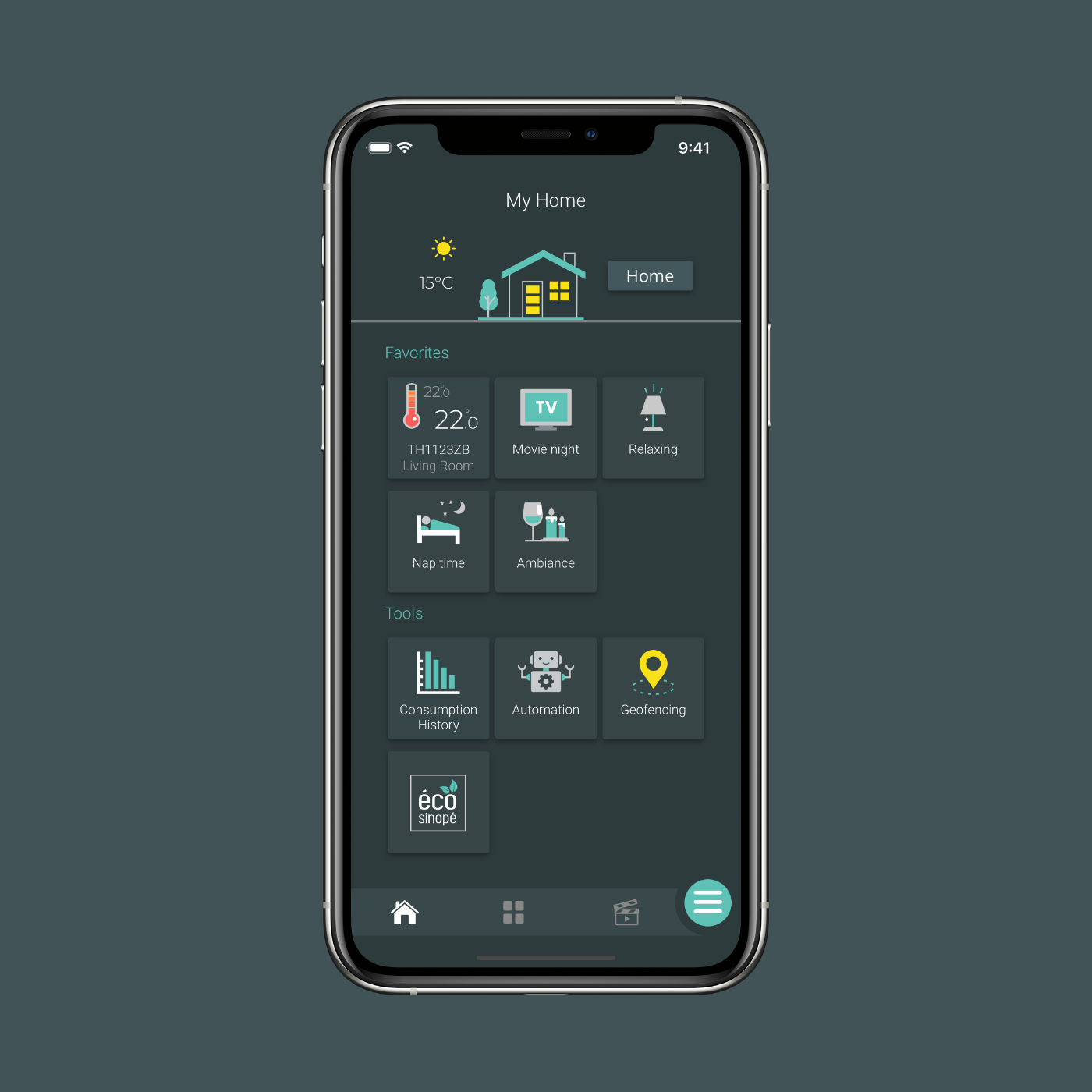

• Neviweb*
• Sedna Wi-Fi valve (2nd gen.)
• Google Assistant*
• Amazon Alexa*
• SmartThings
• Hubitat Elevation
• Rainforest EAGLE-200

*Requires the GT130 gateway

.

The smart electrical controller has the following features:

• Works with Neviweb, SmartThings and Hubitat home automation platforms
• Works with Amazon Alexa and Google Assistant
• Can be voice controlled directly with Amazon’s Echo Plus
• Programmable countdown timer
• Integrates with personalized scenes for interaction of compatible devices*
• Detection of the connected load

These features are available in Neviweb and require the GT130 hub. Features may vary from a platform to another.

Note: When connected only to the Sedna Wi-Fi valve (2nd generation), the electrical load controller does not offer all these features. It will still be able to be turned ON or OFF in the Neviweb app, and it will also be able to be closed in case of water detection to avoid any other potential damage.

.

Requires:

• GT130 gateway, a compatible Zigbee hub or the Sedna Wi-Fi valve (2nd gen.)
• Smartphone or tablet
• Neviweb available on the App Store and Google Play store

.

120/208/240/277/347 Vac, 50/60 Hz

Maximum wire gauge:6GA

.

Double-pole latching relay

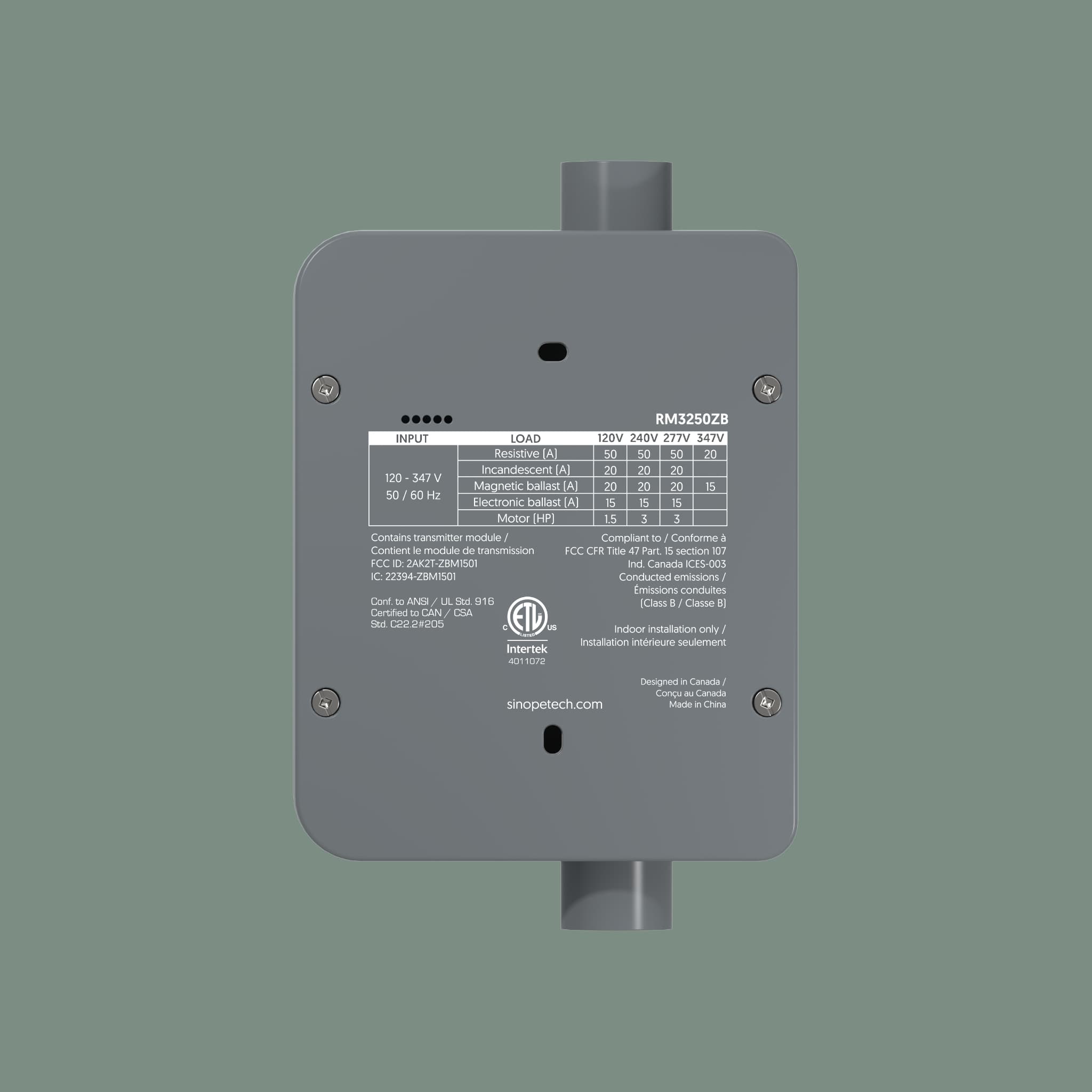

	120 V	240 V	277 V	347 V
Resistive load	50 A	50 A	50 A	20 A
Incandescent lamp	20 A	20 A	20 A
Magnetic ballast	20 A	20 A	20 A	15 A
Electronic ballast	15 A	15 A	15 A
Motor	1.5 HP	3 HP	3 HP

Consumption:

Activated load: 0.5 W @ 120 – 240 Vac

Standby load: 0.47 W @ 120 – 240 Vac

.

0 °C to 40 °C (32°F to 104 °F)

.

-20 °C to 50 °C (-4 °F to 122 °F)

.

Zigbee profile 3.0

Frequency: 2.4 GHz

Transmission power:+20 dBm

Receiver sensitivity: -108 dBm

.

Tested in accordance with ANSI/UL Std.916
Certified under CAN/CSA Std. C22.2 No205

.

• 3 years

.

• RM3250ZB electrical load controller
• Installation guide – English version
• Installation guide – French version
• Template
• 2 screws

.

North American

.

[:fr] [:us] [:]

. Zigbee. 50 A. Works with: Neviweb (GT130), SmartThings, Hubitat, Rainforest EAGLE-200, Alexa, Google Assistant *.

INSTALLATION INTÉRIEURE SEULEMENT



Alimentation : 120/208/240/277/347 Vca, 50/60 Hz

Charge résistive : 50 A @ 120 - 277 Vca, 20 A @ 347 Vca

Charge incandescente : 20 A @ 120 - 277 Vca

Ballast magnétique : 20 A @ 120 - 277 Vca, 15 A @ 347 Vca

Ballast électronique : 15 A @ 120 - 277 Vca

Moteur : 1,5 HP @ 120 Vca, 3 HP @ 240 - 277 Vca



Consommation :

Charge activée : 0,5 W @ 120 - 240 Vca

Charge désactivée : 0,47 W @ 120 - 240 Vca



Transmission :

Profil zigbee 3.0

Fréquence : 2,4 GHz

Puissance d’émission : +20 dBm

Sensibilité du récepteur : -108 dBm



Température d'utilisation : -20 °C à 40 °C (-4 °F à 104 °F)

Entreposage : -20 °C à 50 °C (-4 °F à 122 °F)

Performance énergétique :

Testé en conformité avec la norme ANSI/UL Std.916

Certifié sous CAN/CSA Std. C22.2 No205
