Sedna Ball Valve

Installation with a Water Filtration System

When the home’s water supply does not come from a municipal water system (for example, a private well), it is recommended to install this product after the main water filtration system.

Installing the device downstream of the filter helps reduce the risk of mineral or particle buildup that may be present in untreated water. Over time, these deposits could affect the valve’s ability to fully close when a water leak is detected.

Positioning the device after the filtration system helps maintain the reliability and performance of the water damage protection system.

BV4220-P01-B

CSA B125.3 & CSA B125.14 certification. NSF/ANSI61 compliant.

BV4220

Complies with CSA B125.3-12 Plumbing fittings. EU RoHS 2 tested valve body (Directive 2011/65/EU). Complies with NSF/ANSI61 standard

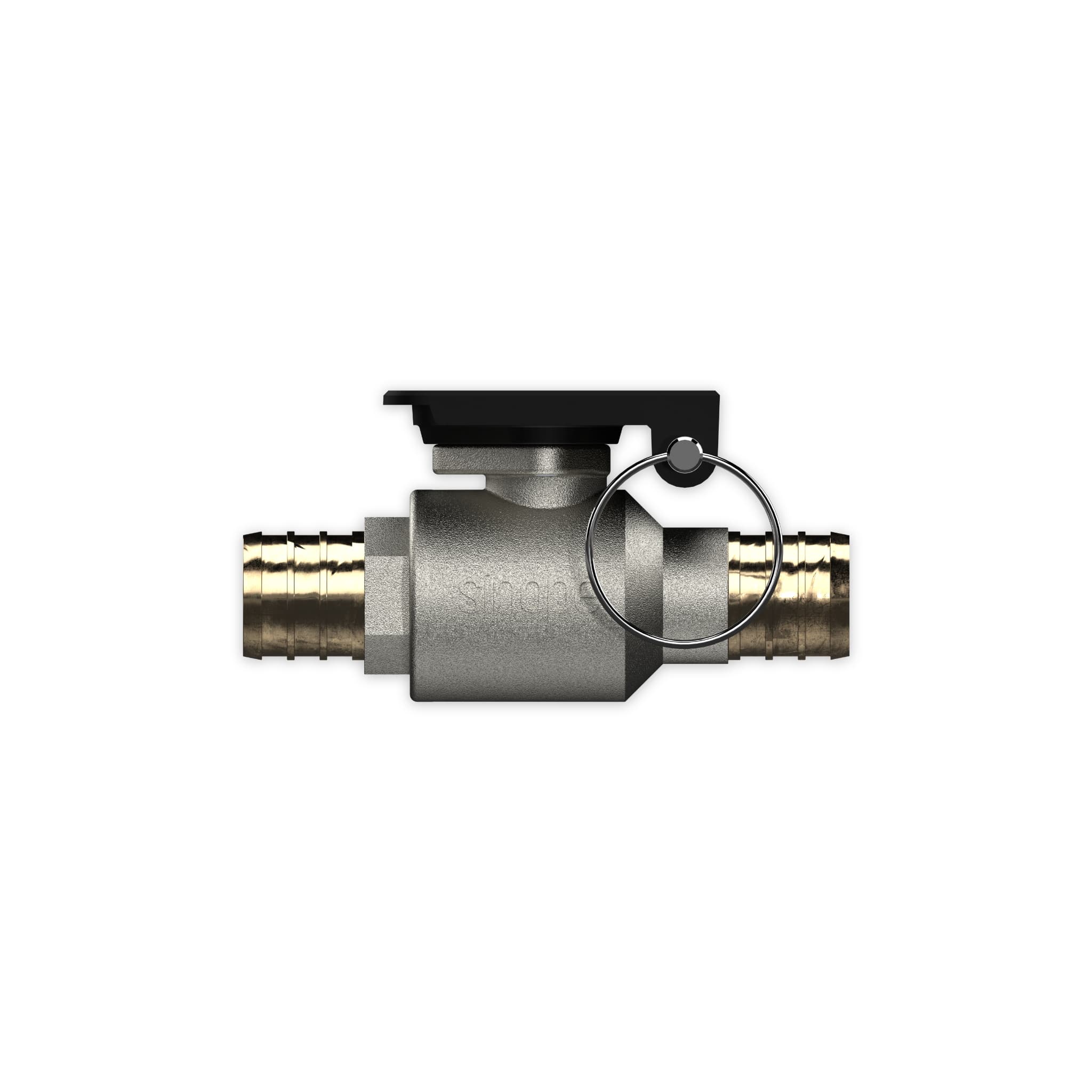

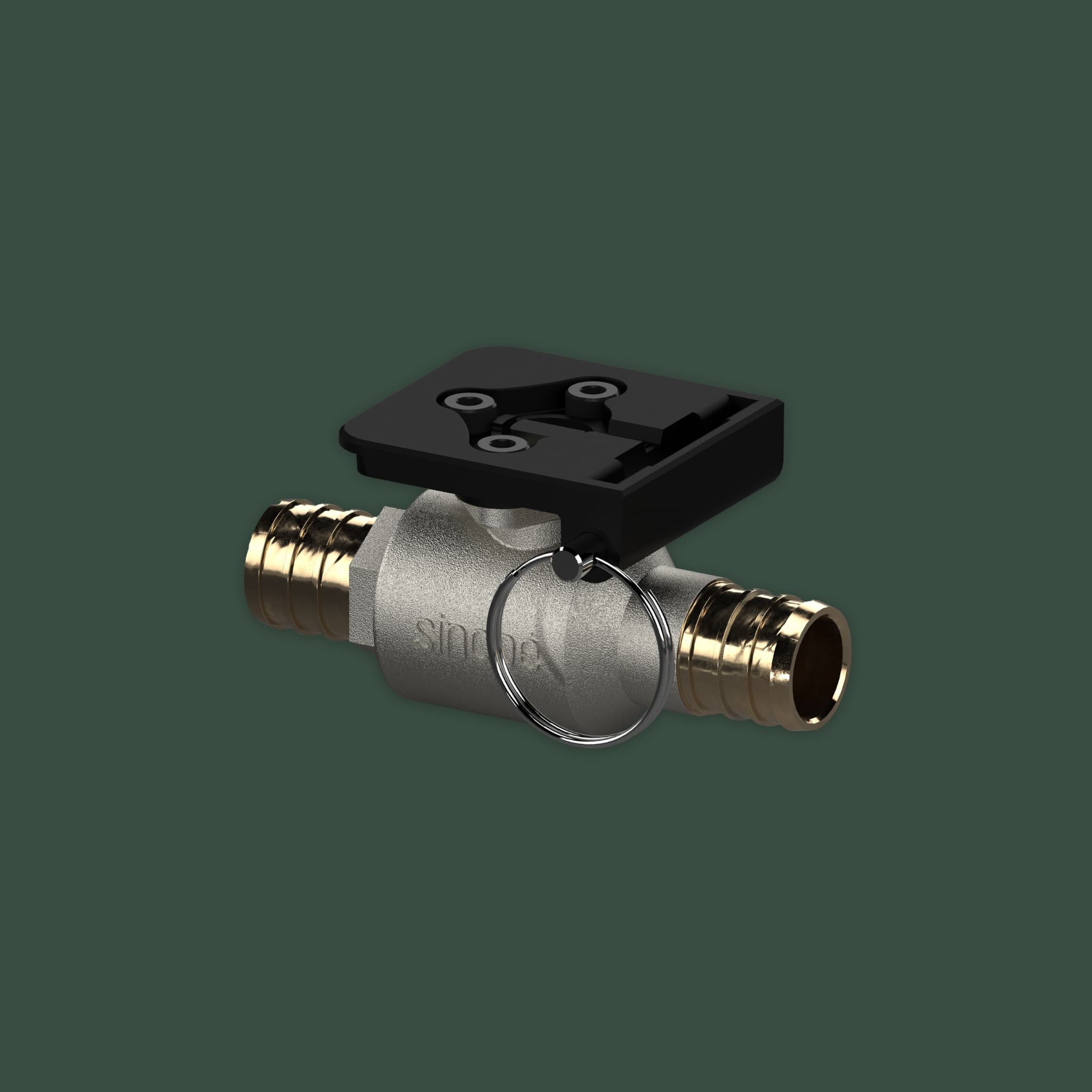

BV4220-P01-B

• Ball valve with brass valve body C46500, lead-free, nickel (exterior)
• Operating temperature: 1 °C to 40 °C (34 °F to 104 °F)
• Maximum water temperature: 85 °C (185 °F)
• Storage: -20 °C to 50 °C (-4 °F to 122 °F)
• 150 PSI
• 1.0 N.m.

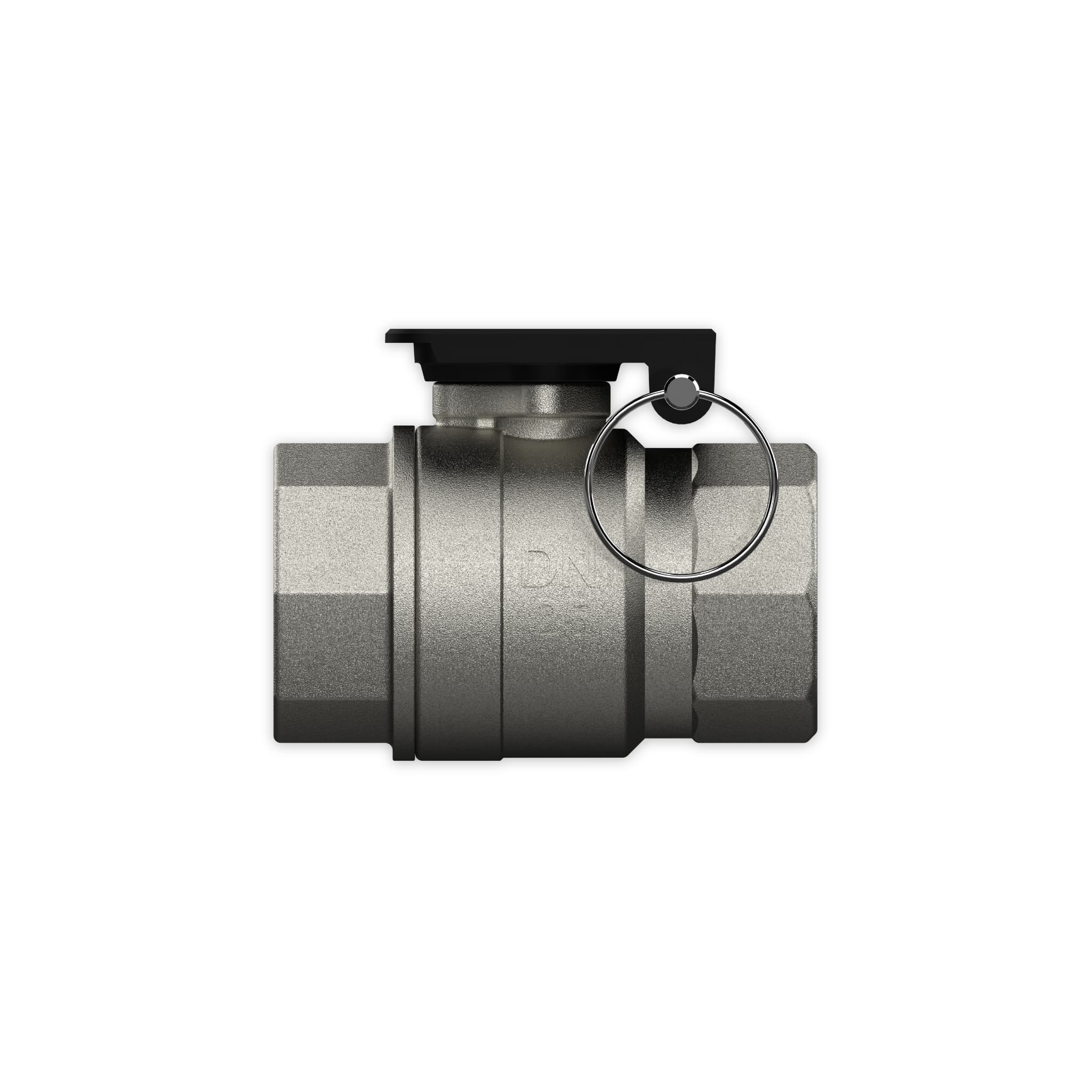

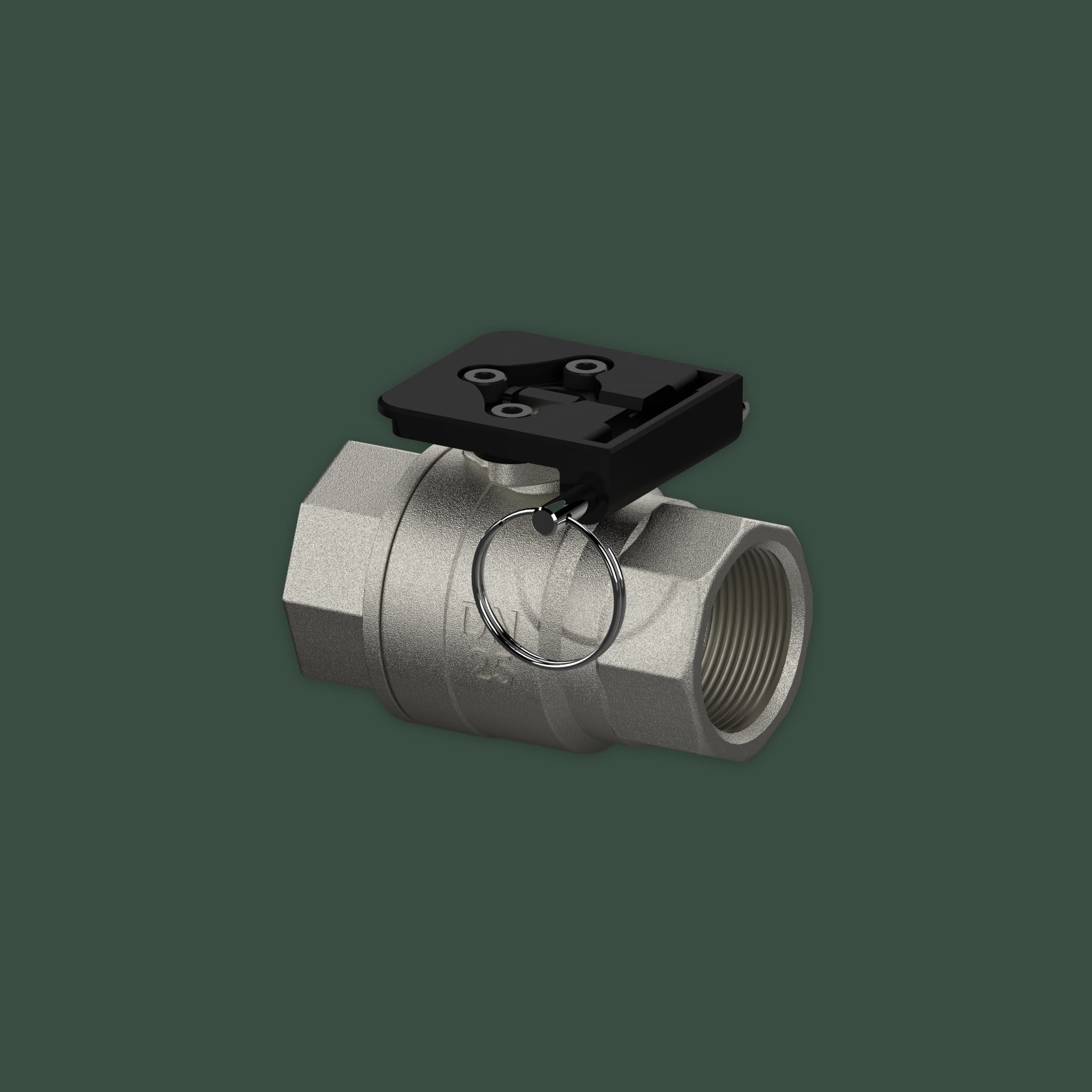

BV4220

• Ball valve with lead-free certified stainless steel valve body conforming to the highest quality standards
• ¾ in NPT
• Operating temperature: 1 °C to 40 °C (34 °F to 104 °F)
• Maximum water temperature: 85 °C (185 °F)
• Storage: -20 °C to 50 °C (-4 °F to 122 °F)
• 145 PSI
• 2.5 N.m.
